View Settings

• Open source in profiler perspective – Enables opening the application's Java source files in the mBProfiler perspective. Otherwise, the Java files are shown in the Java perspective.
• Add profile action to all newly opened perspectives – Turns on and off having the profile button pull-down menu () in the toolbar of each opened Eclipse perspective. To have the button shown only in the mBProfiler perspective and in the perspective that has been active when the mBProfiler has been installed, disable this setting.
• Show system threads – Turns on and off showing JVM's system threads.
• Show qualified names – Enables showing fully qualified class names. However, if the package column is shown, this preference is not taken into account, i.e. qualified names in this case are naturally formed by the information from the package column and from the class one.

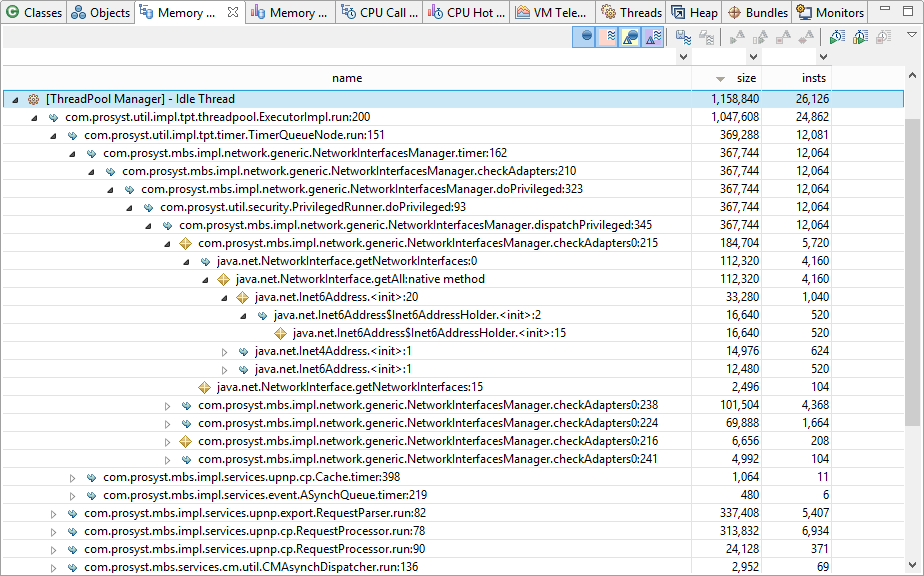

• Show method precision / Show line precision – Determine if several lines of the same method call will be united in a single entry in the Memory Call Tree and the CPU Call Tree (if the sampling method is used). For example, if you select the Show line precision option, three samples of the same method call located in different lines in the application's code will be displayed as separate stack frames like this:

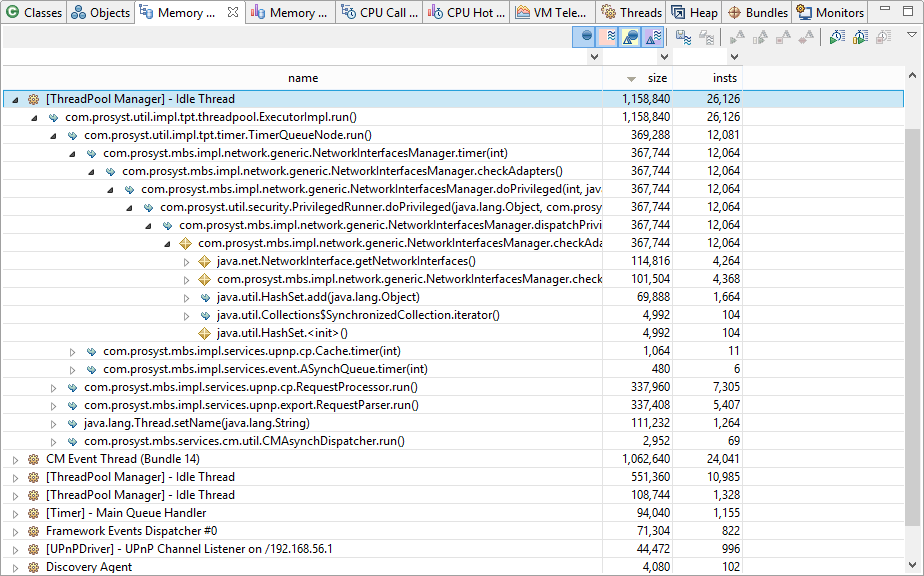

  However, if you select the Show method precision option, the three samples of the same method call will be united in one method node:



• View auto refresh interval (sec) – Specifies the time interval in which the profiling information is refreshed in the mBProfiler views.
