System Architecture

Overview

Policy Admin manages the system policy that connects Identities with security functions.

• Identity is a user or application that might have certain permissions to perform operations on the system.
• Security Function is description of the permissions guarding operations.
• Policy is the link between identity and set of security functions.
• Policy Files are the files, encoded in specific file format that provide: identities, functions and policy. The Policy Provider is the bundle, that provides Policy Files.

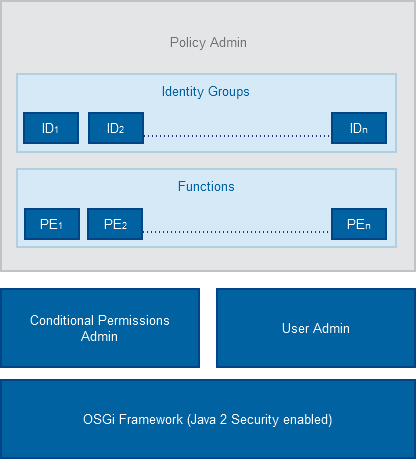

Policy Admin Architecture

The Policy Admin module provides an extension to the OSGi Conditional Permissions Admin, which allows for easier management and creation of security policies. The Policy Admin also extends over to JSON-RPC Web based Services without the need for the OSGi Security Layer to be enabled.

The Policy Admin creates a correlation matrix between Identities (IDs) and their respective rights to access different resources.

Identities (IDs)

Each Identity (ID) represents an identifiable actor in the system for which a policy might be applied. Typically an ID can represent an user or locally-running code (bundle), or remotely running code (3rd-party server accessing remote services), etc. It is possible to define new Identities based on OSGi Conditions and they can be also used by Conditional Permission Admin Identity.

For example the BundleSignerCondition (BSC) allows the policy maker to grant specific rights to bundles coming from identified and trusted parties, based on code signing

It is also possible to use the User Admin entries to define new IDs and allocate them the appropriate rights. This however must be explicitly done using the functions contained in the Policy Admin User Admin bundle. The files that define the IDs can be found in /policy/users. Every file in that directory defines exactly one identity.

For detailed information on how to define IDs refer to Defining IDs and Policies.

Identity Groups (IG)

Identities can be stacked together to form Identity Groups (IG). All the IDs inside an Identity Group inherit the same rights. This allows for easier management and policy definition for multiple entities.

Furthermore, if a Policy Element (PE) for an Identity Group and a specific Function had been defined as mutable, then it is possible for the member Identity to have a customized value of that PE.

For example, if some Identity Group (which groups applications by some criteria) is by default allowed to have Network Access, and that Policy Element is defined as mutable - then a specific application within this group may have a different PE value.

The files that define the Identity Groups are placed in policy/groups/. Every file in that directory defines exactly one group identity.

Policy Elements (PE)

Policy Elements (PE) contain the actual authorization value (allow/deny) of the Identity-Function matrix.

There are two types of Policy Elements allowed:

• Immutable, with a pre-defined value (allow/deny), which cannot be modified.
• Mutable, with a pre-defined value (allow/deny), which can be modified by the administration software.

Functions

The Policy Admin (PA) uses Functions to assign access permissions to IDs. A Function is used to group and abstract the low-level rights (Permissions) granted to an Identity. The semantics and the content of Functions is defined by the policy maker, which is then typically named with some human-readable name, like Network Access, Location Access, User Management, etc.

Functions allow the policy maker to focus on the overall structure of the policy without having to set a myriad of OSGi Permissions separately to each Identity. Such grouping also makes the permission checks more efficient in Bosch IoT Gateway Software. Functions can also represent an end user application. For example, when an application has been downloaded and installed by the device owner, it may appear as a new Function in the policy. This allows the administration UI to visualize this app as a new Function to device owner. The owner can then grant/deny other users (children, guests, etc.) access to this app via PA.

There are two types of functions:

• Static Functions, which typically come from the policy file and are not meant to be changed, like Network Access, Location Access, User Management, etc.
• Dynamic Functions, which can be added/removed dynamically by trusted platform components and which are not known upfront, like downloaded apps.

Policy Admin Identity Providers

The Policy Admin have integrations for User Admin, Permissions Admin and Conditional Permissions Admin which it uses as Identity Providers.

However there are some limitations such as:

• User Admin Identity Provider:
  • Supports only basic group members.
  • Does not support Required members.
• Conditional Permissions Admin Identity Provider:
  • Does not support Identity Groups.
  • Does not support updating Identities.
  • Does not support inserting Policies for a specific identity inside a group.
  • One Identity = One Conditional Permission Info
  • Conditional Permission Infos are ordered CPI1 -> CPI2 -> CPI3 ... CPIn. This ordering is important because that is how the framework test the conditions. The Identity Provider however doesn't have a way to specify that order, which must be taken into consideration

Policy Admin Limitations

The Policy Admin have the following limitations:

• To work correctly, it requires that all identities and functions are implement correctly (equals() and hashCode()).
• Supports loading permissions from bundles only.
• Does not support internationalization.
