Console Commands

This document describes how to use Parser service to execute console commands and how to provide new console commands.

Parser Service Operation Model

The Parser service of the Core Library maintains a common set of commands so that bundles in the OSGi framework can retrieve these commands and redirect them to miscellaneous clients.

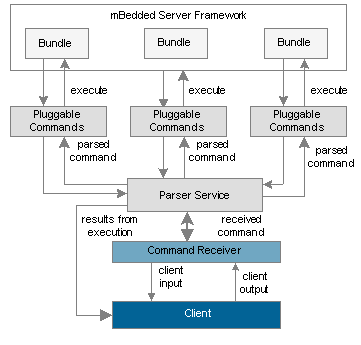

The following diagram clarifies the operation principles of the Parser service:

Calling the Parser Service

You can call the Parser service with the conventional techniques, defined by the OSGi Framework Specification.

  import org.osgi.framework.BundleContext;

  import org.osgi.framework.BundleActivator;

  import org.osgi.framework.ServiceReference;

  import com.prosyst.util.parser.ParserService;

  public class TestActivator implements BundleActivator {

    BundleContext bc;

    ServiceReference parserRef;

    ParserService parser;

    public void start(BundleContext bc) {

    // Retrieving the Parser Service

      parserRef = bc.getServiceReference(ParserService.class.getName());

      parser = ((ParserService) bc.getService(parserRef)).getInstance();

      . . .

    }

    public void stop(BundleContext bc) {

      bc.ungetService(parserRef);

    }

  }

In order to release the runtime resources consumed by the Parser service, when done using it call its release method before ungetting service reference from the framework.

Executing Commands through the Parser Service

In a Programming Way at Runtime

You can make the Parser service load the execution of a command by calling its parseCommand method, which as input argument requires the command together with its options and parameters, all formatted as a single string. The Parser Service parses the input into command tokens for you.

Do not place a new line symbol in the execution string.

This listing uses the Parser service from Listing 1.1 to invoke the cd info command (see "System Service Console Commands"), which result in switching to the info group.

Listing 1. Parsing commands through the Parser service.

  import org.osgi.framework.BundleContext;

  import org.osgi.framework.BundleActivator;

  import org.osgi.framework.ServiceReference;

  import com.prosyst.util.parser.ParserService;

                  . . .

    //The string of the command to add.

    String command = "cd info";

    parser.parseCommand(command);

                  . . .

Through a Script at Startup

At registration, the Parser service is capable of launching an install script with console commands to be executed, whose location is the value of the mbs.parser.startup system property (if local path is used, the location must be absolute). The preferred format of the commands within the startup install script is <group>.<command>.

The startup file is treated in the same way as for the exec command - if the value of mbs.parser.startup is a valid URL, then the script is retrieved from there. Otherwise, it is searched for in the directory specified with the mbs.exec.base system property. You might also use the mbs.parser.startup.onfwstart and mbs.parser.startup.newthread system properties to additionally configure the startup script execution. For more information on the system properties of the Parser service, refer to the Setup section.

Mapping Execution Results to a Communication Stream

For a separate command output, you should use a separate instance of the Parser service. The Parser service is not available through a service factory and all its consumer receives the same service object. Changing the output from a bundle will result in changing the output in all other bundles using the Parser Service, which in some cases may cause troubles. That is why, a separate instance per output stream is a requirement.

To use another output stream, call the getInstance method to obtain a separate Parser service instance.

To make a console client view the results from a command execution, you should specify the stream to which data should be redirected. Call the setOutputStream method of a separate Parser Service object with the target output stream as parameter. Next, on calling the parseCommand method, the result will be provided over the output stream specific to the Parser Service instance.

This listing redirects command results to the system output (for example the local console) identified by the System.out print stream.

Listing 2. Redirecting execution results.

  parser.setOutputStream(System.out);

Command Syntax

The command syntax adopted in the Parser service is described as:

[<group_name>.]<command> [<param> [<param>]][&]

where:

•     <group_name> – The name of the group that holds the command. This token may not be used if the user is in the group the command belongs to.
•     <command> – The name of the command. You can refer a command also by its shortcut if supported by the respective Pluggable Commands service.
•     <param> – Zero or more command parameters and options, separated by spaces. The number and format of parameters and options is specific for every command implementation. For example, the list command of the fw group takes no parameters, only options.
•     [&] – Option that loads a command execution in a separate thread. You can use it if the execution of a command will block the opportunity to issue another command.

The Parser service makes no difference between parameters and options. An option exists only as a term and is generally assumed as a parameter, which starts with "-" symbol. It is up to corresponding Pluggable Commands service to decide how to interpret a parameter.

Adding Pluggable Commands

Adding pluggable commands to this common set provides capabilities for management and configuration of specific bundles.

As it was described above, to plug commands into the command inventory of the Parser service you should develop a Pluggable Commands service and register it in the OSGi framework. The interface to implement is com.prosyst.util.pcommands.PluggableCommands.

Providing Information About Commands

You pass information about your commands in the getCommandInfo method. It should return an array of CommandInfo objects, each of them dedicated to a single command. You should pass the following command properties in the CommandInfo constructor:

•     String[] names – The name of the command at position 0 followed by the shortcuts
•     String description – The description of the command, which is displayed when the help Parser Service command is invoked.
•     String[] params – The parameters, which the command takes. Suggesting that options are another kind of parameters, you specify the command options here as well.

    At position (2*i) place the parameter/option name and at (2*i + 1) - the parameter/option description, where i is equal to or greater than zero.

Executing a Command

In the executeCommand method of PluggableCommands you should execute a command passed by the Parser service. The arguments that this method receives are:

•     Command name
•     Command parameters including options
•     Print stream to pass execution results to. The Parser service then dispatches the messages to client applications (see the Parser Service Operation Model above).

Organizing Commands in Groups

You should organize your commands in a group classifying the functions that they provide. Every group has a name and a help message describing its purpose. They are specified in the getGroupName and getHelpMessage methods of the Pluggable Commands service.

You cannot insert commands in groups that are already defined by another entity.

Registering the Pluggable Commands as a Service

Finally, the Pluggable Commands service should be registered in the OSGi framework under the com.prosyst.util.pcommands.PluggableCommands interface name. The Pluggable Commands service should have the following registration properties:

•     "group" – Indicates the command group the pluggable commands should be in. The value of this property should be the same as the one returned by the getGroupName method of the Pluggable Commands service.
•     "description" – Provides a short description of the command group. The value of this property should be the same as the one returned by the getHelpMessage method of the Pluggable Commands service.

If the registration properties are missing, the Parser service will get the Pluggable Commands service right after it is registered. Otherwise, the Parser service will hold only a reference to the service and will not get the service object until a command exported by the service is executed.

Using a Utility to Format the Command Output

The com.prosyst.util.pcommands.PCommandsUtils class contains methods for enhanced formatting of the printed command output.

An Example of Pluggable Commands

This listing contains the TestCommands class, which implements a Pluggable Commands service. In the getGroupName method it adds a new command group, called "example". The getCommandInfo method introduces commands with the following properties:

• name: "command"
• shortcuts: "comm" and "c"
• option: "-o" described as "Command option"
• parameter: "parameter" described as "Command parameter"

When the client issues the "command" command, the executeCommand method prints the parameters received as well as a message when the command option is used.

Listing 3. Defining new commands.

import com.prosyst.util.pcommands.CommandInfo;

import com.prosyst.util.pcommands.PluggableCommands;

import java.io.PrintStream;

public class TestCommands implements PluggableCommands {

  private static String command = "command";

  private static String shortcut1 = "comm";

  private static String shortcut2 = "c";

  // Methods inherited from interface com.prosyst.util.pcommands.PluggableCommands

  // Executing a command on request

  public void executeCommand(String name, String[] params, PrintStream pStream) {

    String option = "";

    String result = "";

    if(name.equals(command) || name.equals(shortcut1) || name.equals(shortcut2)){

      for(int i=0; i < params.length; i ++) {

        if(params[i].equals("-o")) {

          option = params[i];

        } else {

          result = result.concat(params[i]);

        }

      }

      if(option != "") {

        pStream.println("\tExample option used!");

      }

      pStream.println(result);

    } else {

      pStream.println("Unrecognized command: " + command);

    }

  }

    // Defining command properties

  public CommandInfo[] getCommandsInfo() {

    CommandInfo[] commands = new CommandInfo[1];

    String[] names = {command, shortcut1, shortcut2};

    String[] params = {"[-o]", "Command option", "parameter", "Command parameter"};

    commands[0] = new CommandInfo(names, "Example command ", params);

    return commands;

  }

  public String getGroupHelpMessage() {

    return "Just an example command group";

  }

  // Specifying the group's name

  public String getGroupName() {

    return "example";

  }

}

This listing exemplifies how to register the commands above into the framework so that the Parser service can receive a notification and insert them into its command inventory.

Listing 4. Announcing new commands set by registering it as a service in the framework.

  import org.osgi.framework.BundleActivator;

  import org.osgi.framework.BundleContext;

  import org.osgi.framework.ServiceRegistration;

  import TestCommands;

  import java.util.Hashtable;

  public class CommandsActivator implements BundleActivator {

    ServiceRegistration sReg = null;

    String servName = "com.prosyst.util.pcommands.PluggableCommands";

    public void start(BundleContext bc) {

      // Registering the collection of commands as a service

      Hashtable regProps = new Hashtable();

      regProps.put("group", "example");

      regProps.put("description", "Just an example command group");

      sReg = bc.registerService(servName, new TestCommands(), regProps);

      if (sReg != null) {

        System.out.println("Commands registered successfully!");

      }

    }

    public void stop(BundleContext bc) {

      sReg.unregister();

    }

  }
