HDM API System Architecture (Deprecated)

HDM API System Architecture Diagram

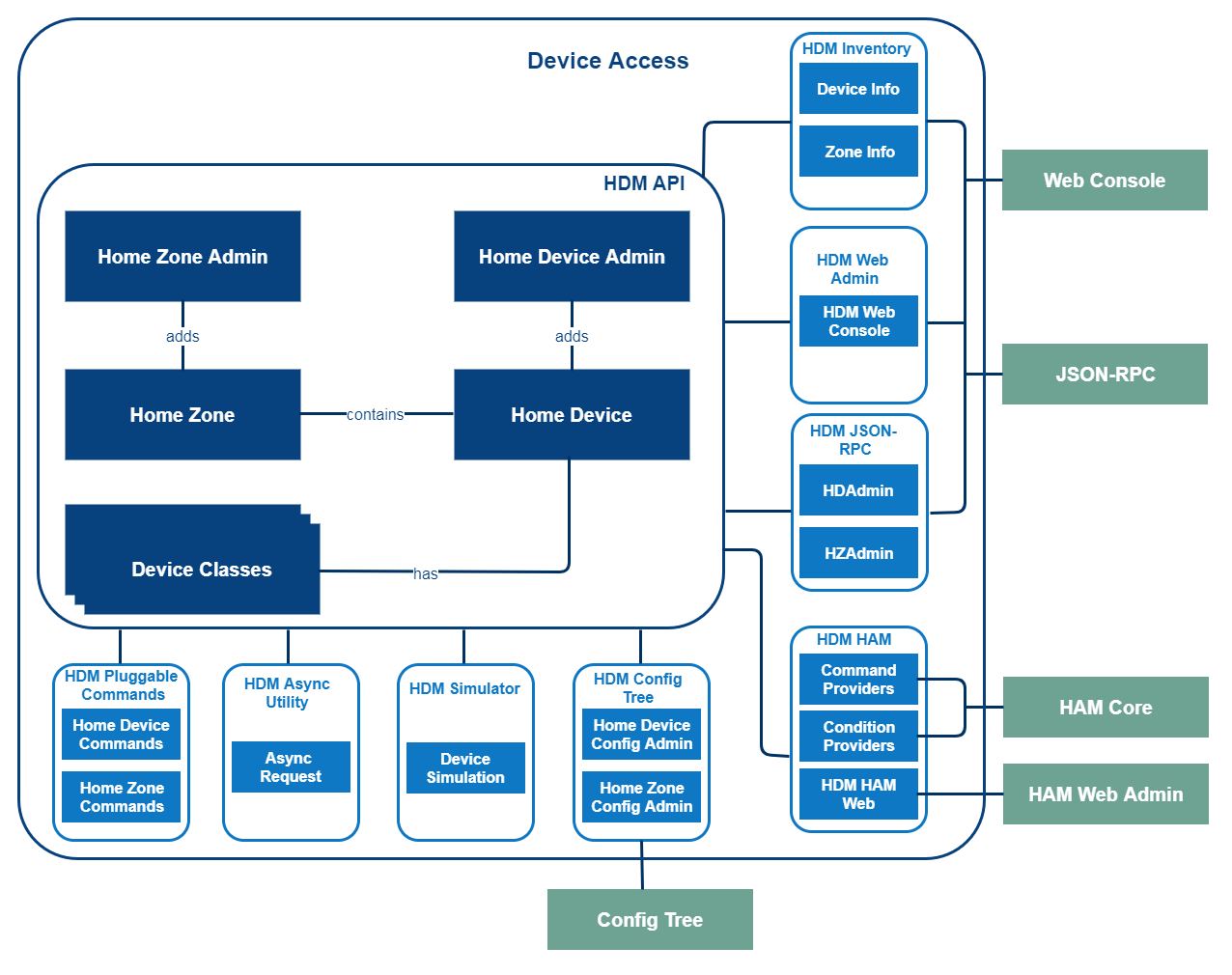

The following diagram shows the main components in the Device Access module from the perspective of the HDM API implementation.

da_hdm_impl_systArch

Home Device Admin

The Device Admin is used for:

obtaining information about protocol adapters,
getting available home devices,
adding new home devices if the protocol adapter supports it,
removing existing home devices if the protocol adapter supports it,
forcing search for new home devices if the protocol adapter supports it;

This interface (com.prosyst.mbs.services.hdm.HomeDeviceAdmin) will be registered only when the HDM API implementation is enabled. The HDM API implementation is disabled by default. If you want to use the HDM API implementation, the steps described in HDM API Setup Guide should be followed.

Home Device

One Home Device is a representation of one physical home device. It provides common information related to home devices such as UID, name, status, vendor, version, type etc. It provides access to Device Classes which represent the functionality of home devices.

One physical home device is represented by one Home Device. Complex physical home devices will be represented with a set of Home Device objects. The main functionalities of physical devices are represented as child Home Device objects.

Device Class Objects

The functionality of Home Devices is represented by Device Class objects. Each Home Device may have zero or more Device Class objects attached to it.

Home Zone Admin

The Home Zone Admin is used for:

getting available home zones,
adding new home zones,
removing existing home zones;

This interface (com.prosyst.mbs.services.hdm.zones.HomeZoneAdmin) will be registered only when the HDM API implementation is enabled. The HDM API implementation is disabled by default. If you want to use the HDM API implementation, the steps described in HDM API Setup Guide should be followed.

Home Zone

Home Zones allow grouping of home devices according to their location, functionality, etc. Each Home Zone can have a user friendly name. Home Zones support common executable operations, such as setting a property on all devices in the zone that have a particular device class.

A zone can contain child zones. One Home Device can participate in several Home Zones. There is a special Home Zone called System Zone that contains all Home Zones that are not added as child zones, as well as the Home Devices that are not added to any zone.

HDM Inventory

The HDM Inventory provides structured information about available home devices and home zones. This user friendly information is shown through the Web Console.

HDM Web Admin

With the use of the HDM Web Admin module the HDM API implementation can be accessed via a web interface. The HDM Web Console is a web-based application that allows management of home devices and home zones.

HDM JSON-RPC

This module provides JSON-RPC access to the HDM API implementation. The HDM JSON-RPC allows remote access to home devices and home zones over HTTP connection as well as receiving remote notifications about any changes in the state of the home devices via WebSocket connection.

HDM HAM

The HDM HAM module describes the principles of adding automation for home devices and home zones. This module provides:

Home Automation Manager commands related to the HDM API implementation. These commands execute device class object-related operations or set values to device class object properties.
Home Automation Manager conditions related to the HDM API implementation. These conditions are triggered when a home device's property or device class object's property value is changed.

HDM Config Tree

The HDM Config Tree allows configuration of home devices and home zones in the system by XML or binary format. The configuration data can be imported and exported.

HDM Simulator

The HDM Simulator contains a protocol adapter which is used for creating and managing simulated home devices.

HDM Async Utility

The standard methods for changing properties or invoking operations on Device Class Objects are executed synchronously. This means that the program halts while the Protocol Adapter waits for a response from the physical home device. The HDM Async Utility provides a method for changing properties and invoking operations on Device Class Objects that are executed asynchronously. For example- you can send requests to a sleeping device. These requests are put in a queue and are executed when the home device wakes up. This is impossible with synchronous methods.

HDM Pluggable Commands

The HDM API implementation exports a set of pluggable commands that can be used to contact and control home devices using various home protocols.
