The operational parameters of the OSGi Log Bundle, exported by its Managed Service, can be conveniently configured through the Web Admin Console.

• For a complete list of bundle configurations, go to OSGi tab > Configuration option of the drop-down menu:

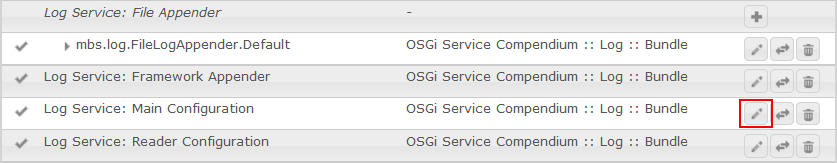

• The Log Service configurations, exported by the Log Bundle are under the name of Log Service: <Name_of_Configuration>:

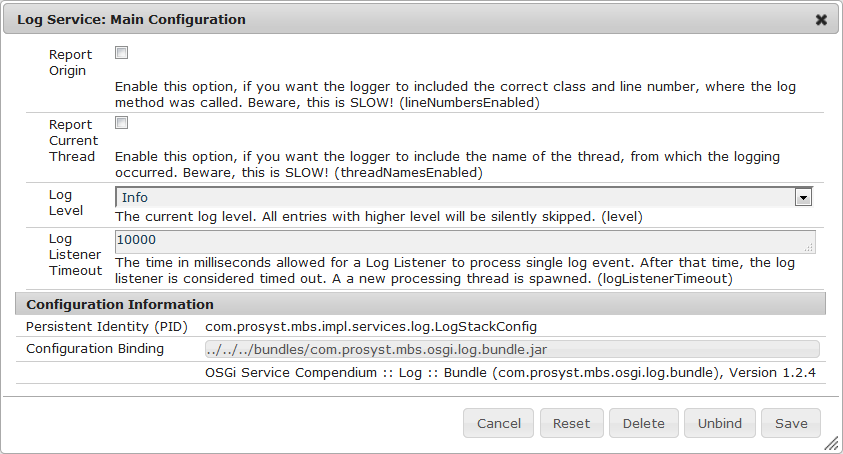

• The Log Service properties can be accessed after a click on a particular configuration or via its edit button (in red above). Use the Save button to apply modifications in the properties. On the screen shot the "Log Service: Main Configuration" properties are shown:



• All the configuration properties could be explored via Status tab> Configurations option.


  PID = mbs.log.FileLogAppender.Default

    Factory PID = com.prosyst.mbs.impl.services.log.FileLogAppender

    BundleLocation = ../../../bundles/com.prosyst.mbs.osgi.log.bundle.jar

    customFormatter =

    enabled = false

    entriesThreshold = 100

    logsDir = logs

    maxBackupCount = 4

    maxFileSize = 32768

    mdcEnabled = false

    service.factoryPid = com.prosyst.mbs.impl.services.log.FileLogAppender

    service.pid = mbs.log.FileLogAppender.Default

    timeThreshold = 10000


  PID = com.prosyst.mbs.impl.services.log.FrameworkLogAppender

    BundleLocation = ../../../bundles/com.prosyst.mbs.osgi.log.bundle.jar

    enabled = true

    mdcEnabled = false

    service.pid = com.prosyst.mbs.impl.services.log.FrameworkLogAppender


  PID = com.prosyst.mbs.impl.services.log.LogStackConfig

    BundleLocation = ../../../bundles/com.prosyst.mbs.osgi.log.bundle.jar

    level = 3

    lineNumbersEnabled = false

    logListenerTimeout = 10000

    service.pid = com.prosyst.mbs.impl.services.log.LogStackConfig

    threadNamesEnabled = false

  PID = com.prosyst.mbs.impl.services.log.service.LogReaderFactory

    BundleLocation = ../../../bundles/com.prosyst.mbs.osgi.log.bundle.jar

    maxEntryCount = 100

    service.pid = com.prosyst.mbs.impl.services.log.service.LogReaderFactory



  Configuration status export as zip could be disabled by antivirus programs. If you happen to receive an empty zip configuration statuses (48 bytes long) you could try stopping your antivirus program before exporting.

• You can conveniently change the properties following the steps in Editing the Value of a Configuration Property. The change will be reflected in the Configurations option. For example, if the Report Origin and Report Current Thread boxes are checked for the options to be enabled, a change can be seen in the Configurations option.



  PID = com.prosyst.mbs.impl.services.log.LogStackConfig

    BundleLocation = ../../../bundles/com.prosyst.mbs.osgi.log.bundle.jar

    level = 3

    lineNumbersEnabled = true

    logListenerTimeout = 10000

    service.pid = com.prosyst.mbs.impl.services.log.LogStackConfig

    threadNamesEnabled = true
