Follow the general steps for discovering and connecting BLE devices.

After successfully connecting a BCDS SCD device, a new device item BulkDataTransfer will be registered.

The BulkDataTransfer functional item allows download of data logged during ShortTermExperiment operation. In order to be able to work with these commands ShortTermExperiment must be stopped, if not use ScdSettings.sendGenericCommand(0x20).

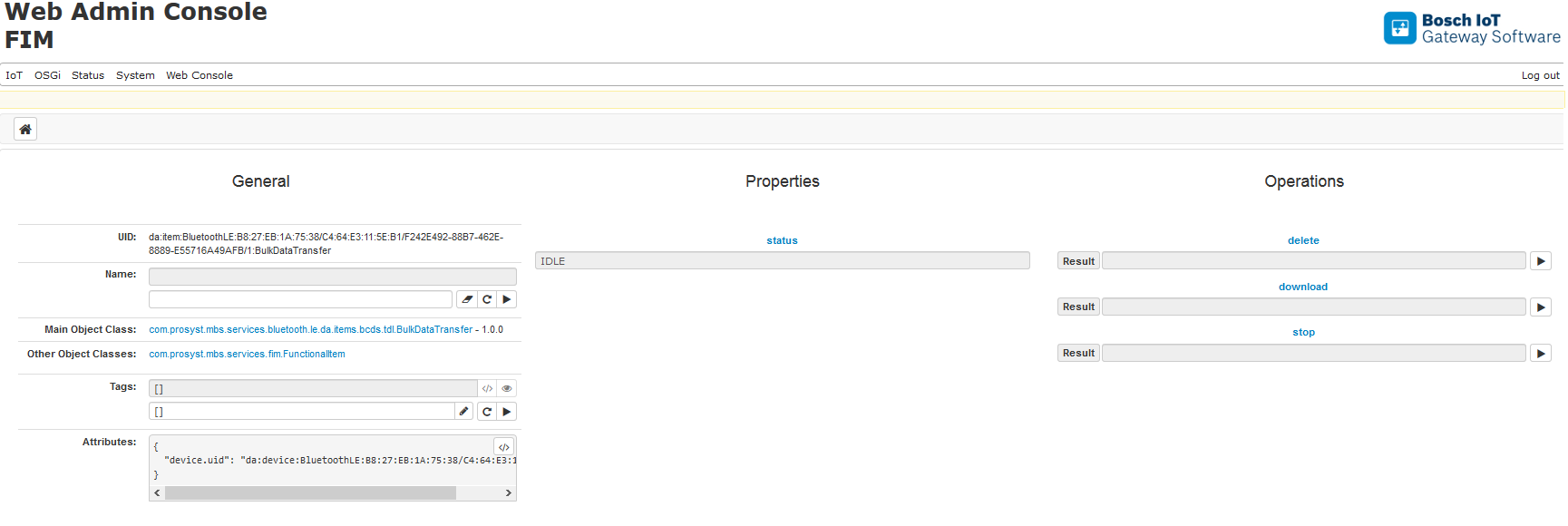

To configure the BulkDataTransfer Service, click the Details button of the com.prosyst.mbs.services.bluetooth.le.da.items.bcds.tdl.BulkDataTransfer item.

Properties

• The status property indicates the current status of the device.

When download is executed the status property will change from IDLE to ONGOING and at the end - FINISHED. In case of an error the status will be ERROR.

Operations

• The delete operation is used to delete all stored data on the device. To execute it click the Set button
• The download operation is used to download all the data from the device. To execute it click the Set button.
• The stop operation is used to stop the currently ongoing download. To execute it click the Set button

Downloaded data is stored in HistoryAdmin Service.
